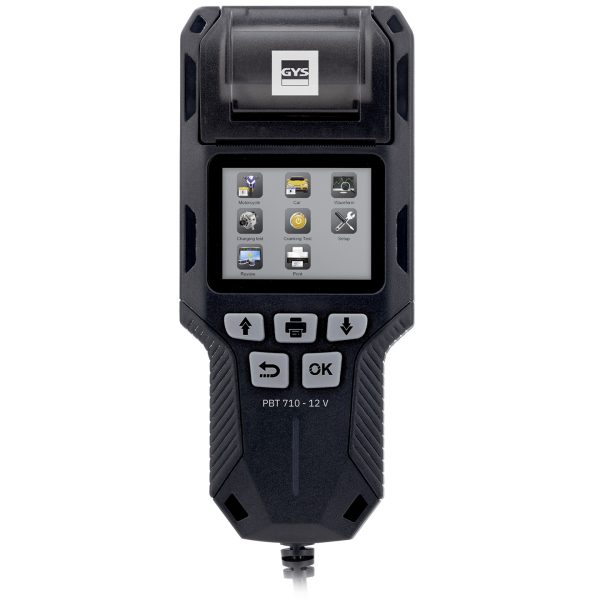

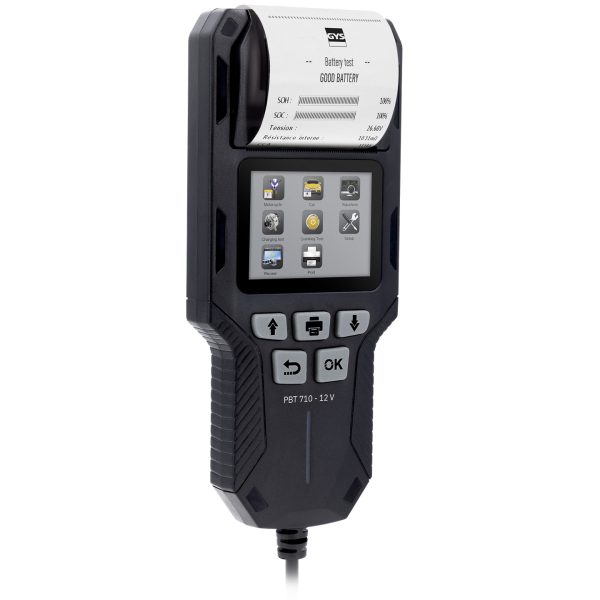

PBT 710 – START/STOP BATTERY TESTER

Professional battery tester with integrated printer and intuitive colour display.

COMPREHENSIVE TESTING FUNCTIONALITY

12 V Battery Test:
Consists of 4 phases:
– Battery health test
– Cold cranking capacity test (CCA)
– Internal resistance test
– Battery voltage and state of charge test

12 V starter test:
– Start-up voltage test.

12 V alternator test:
– Testing of no-load and under-load voltage, as well as under-load current surge.

Waveform:
– Controls the waveform of the battery voltage

VERSATILE
Compatible with 3 types of lead-acid batteries from 5 to 220 Ah:
• Sealed VRLA / GEL / AGM FLAT PLATE / AGM SPIRAL batteries
• STANDARD LIQUID batteries
• START / STOP batteries (EFB/AGM)

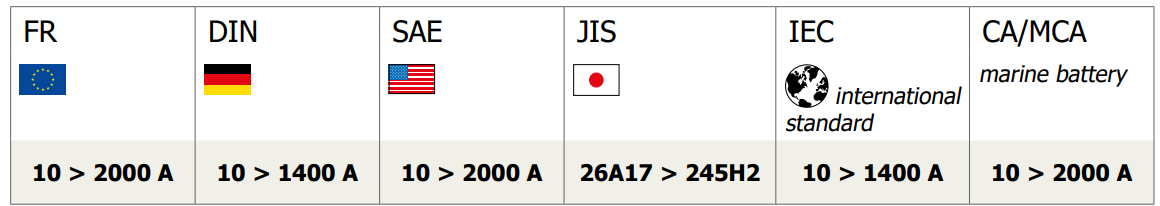

Working specifications:

HIGHLY ACCURATE
– Automatic external temperature compensation.
– Dynamic resistance measurement minimises battery discharge and gives a reliable result
that is not influenced by:
– surface charge
– parasitic load (lights, various indicators, etc)
– contact imperfections (oxidation of terminals/lugs, loose connections)

INTUITIVE & SAFE
– 2.8-inch LCD colour screen.
– LED on the front panel gives a quick visual indication of the test
result.
– Result available in less than 1 second.
– Follow-up with a new test instantaneously.
– Stores the results of the last test performed.
– Reverse polarity protection.
– PC application available for electronic data capture of the most recent test results.
