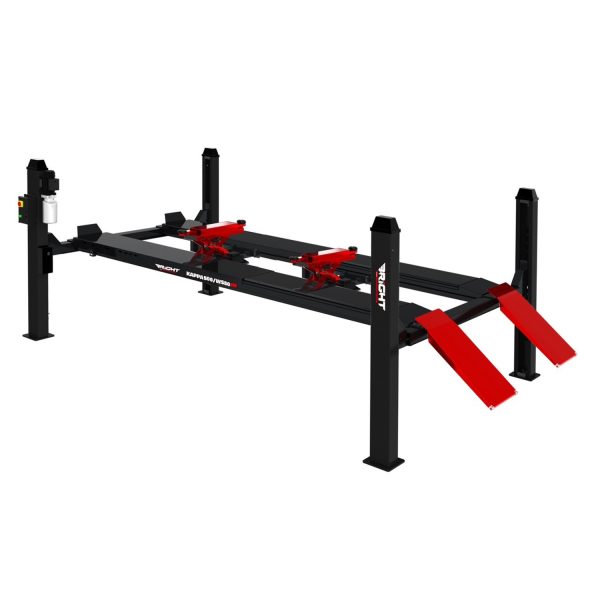

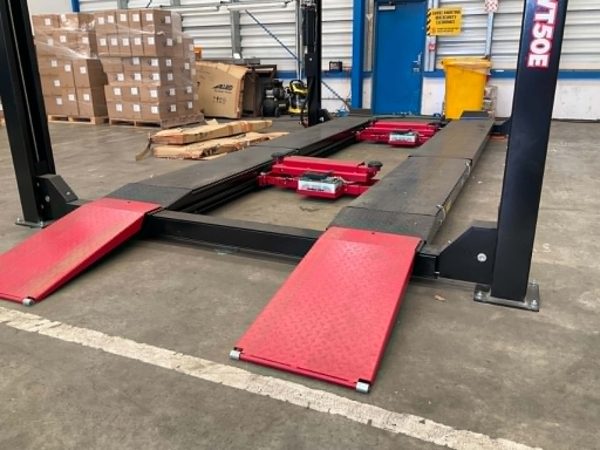

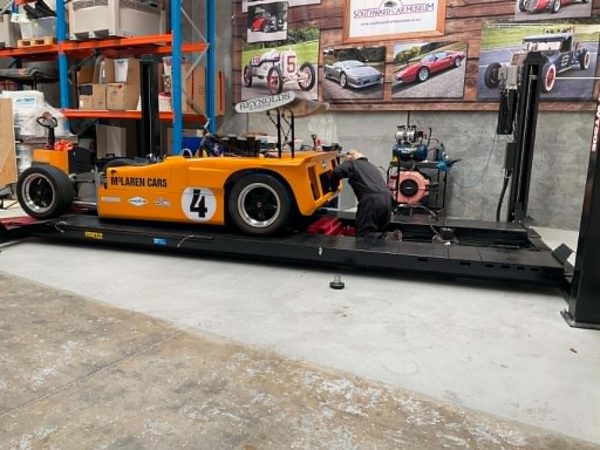

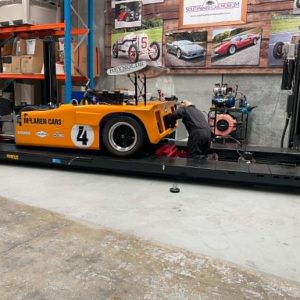

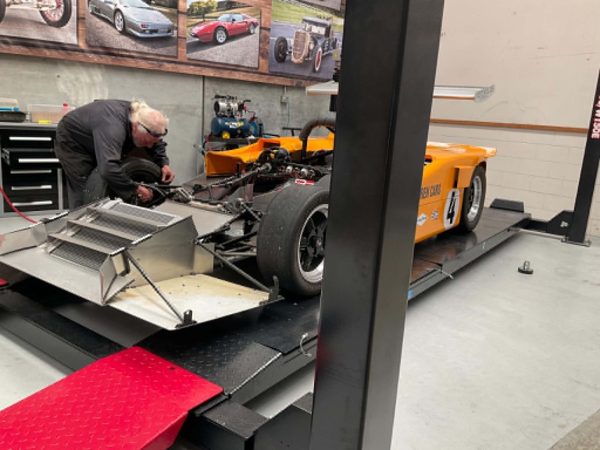

KAPPA 500 WT50 4 Post Hoist Inc Two Jacking Beams

**Note** Price includes Two Jacking Beams

• Extended Platform Design – Perfect for accommodating longer wheelbase vehicles with ease.

• Pneumatic 4-Point Locking System – Saves time and ensures effortless, simultaneous unlocking for maximum convenience.

• Adjustable Hydraulic Descent – Hydraulic power unit includes an oil flow regulator to precisely control lowering speed.

• Steel Rope Breakage Protection – Built-in safety mechanism for worry-free operation.

• Adjustable Runway Spacing – Easily adapts to vehicles with varying wheel widths.

• Versatile Spacer Blocks – Supplied with a range of spacer blocks to suit different wheelbases and turntable sizes.

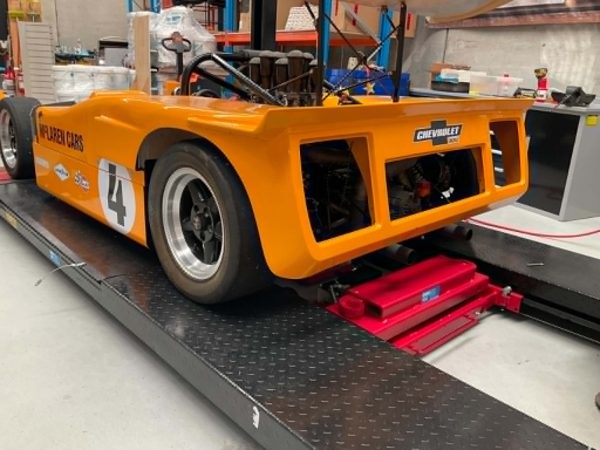

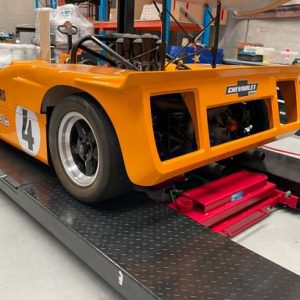

• Dual Jacking Beams Included – Two jacking beams provided, each with independent lift and descent control.

• 24V Low-Voltage Control System – Safe and reliable electrical operation for peace of mind.

Technical Specifications – 4 Post Hoist

• Lifting Capacity: 5,000 kg

• Lifting Height: 245 mm – 1,800 mm

• Jacking Beam Height: 50 mm – 450 mm

• Jacking Beam Capacity: 3,000 kg

• Air Pressure Requirement: 6 – 9 bar

• Total Weight: 1,780 kg

• Runway Length: 5,000 mm

• Runway Width: 550 mm

• Rise Time: Approx. 55 seconds

Package Dimensions:

1. 5,450 × 560 × 760 mm

2. 820 × 240 × 320 mm

3. 920 × 580 × 320 mm
